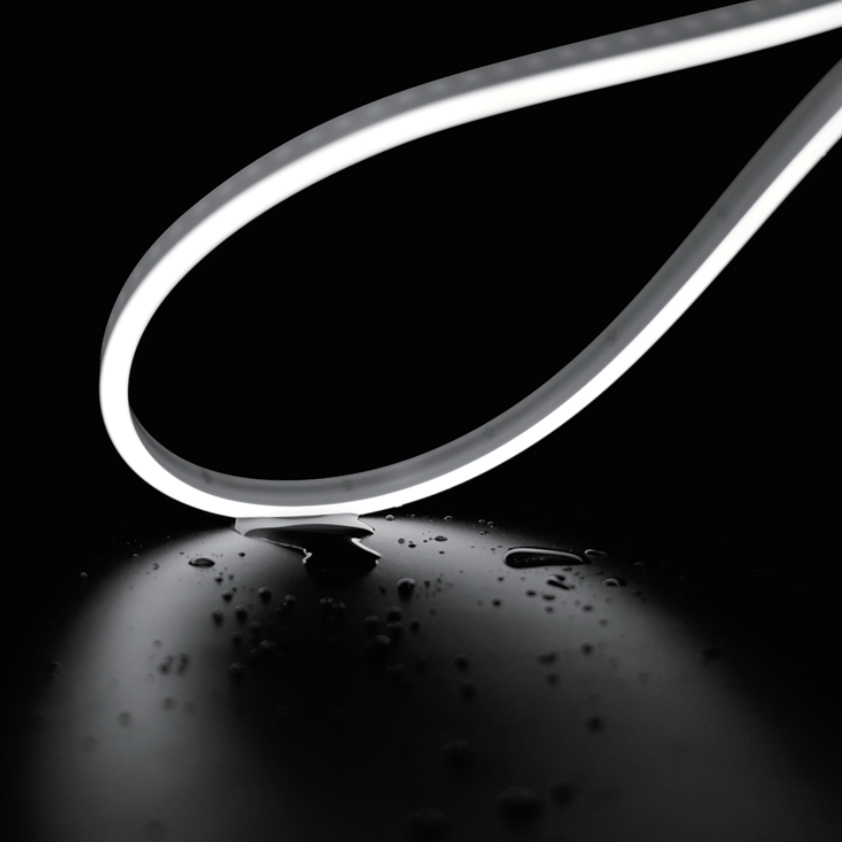

Waterproof IP68 Side Flex Strip Light

The Waterproof IP68 Side Flex Strip Light is custom-made for each project to ensure it maintains its waterproof performance when used in submerged applications.

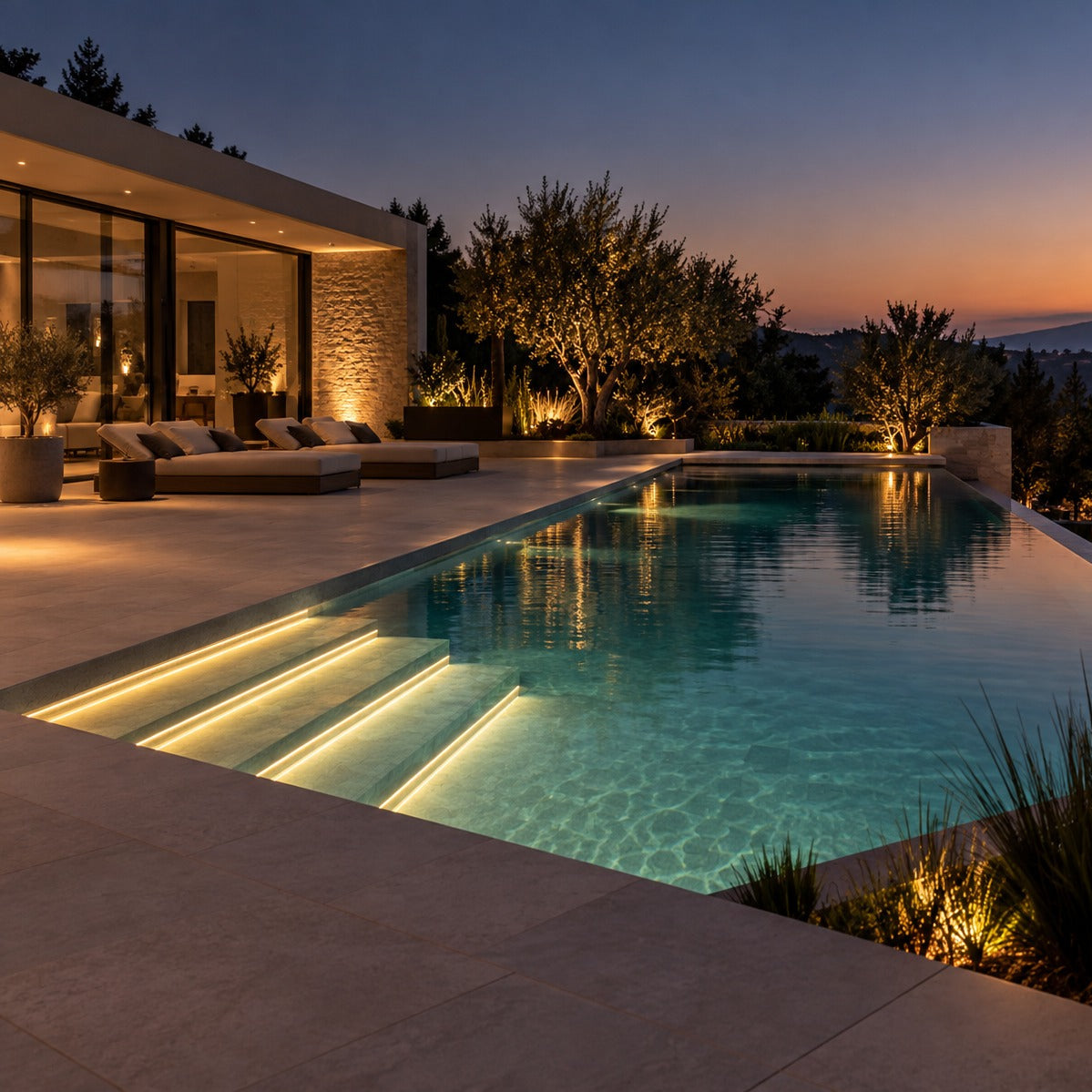

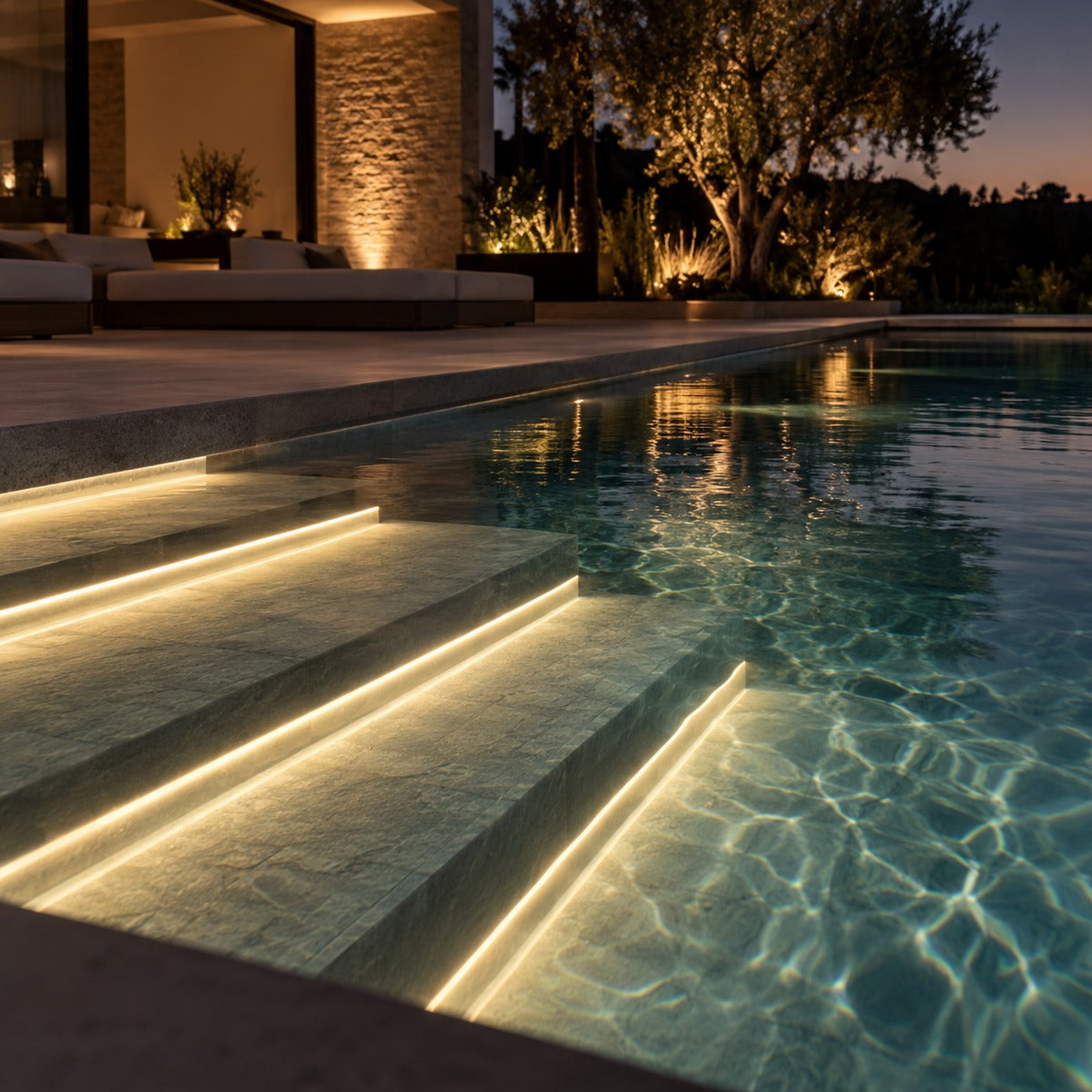

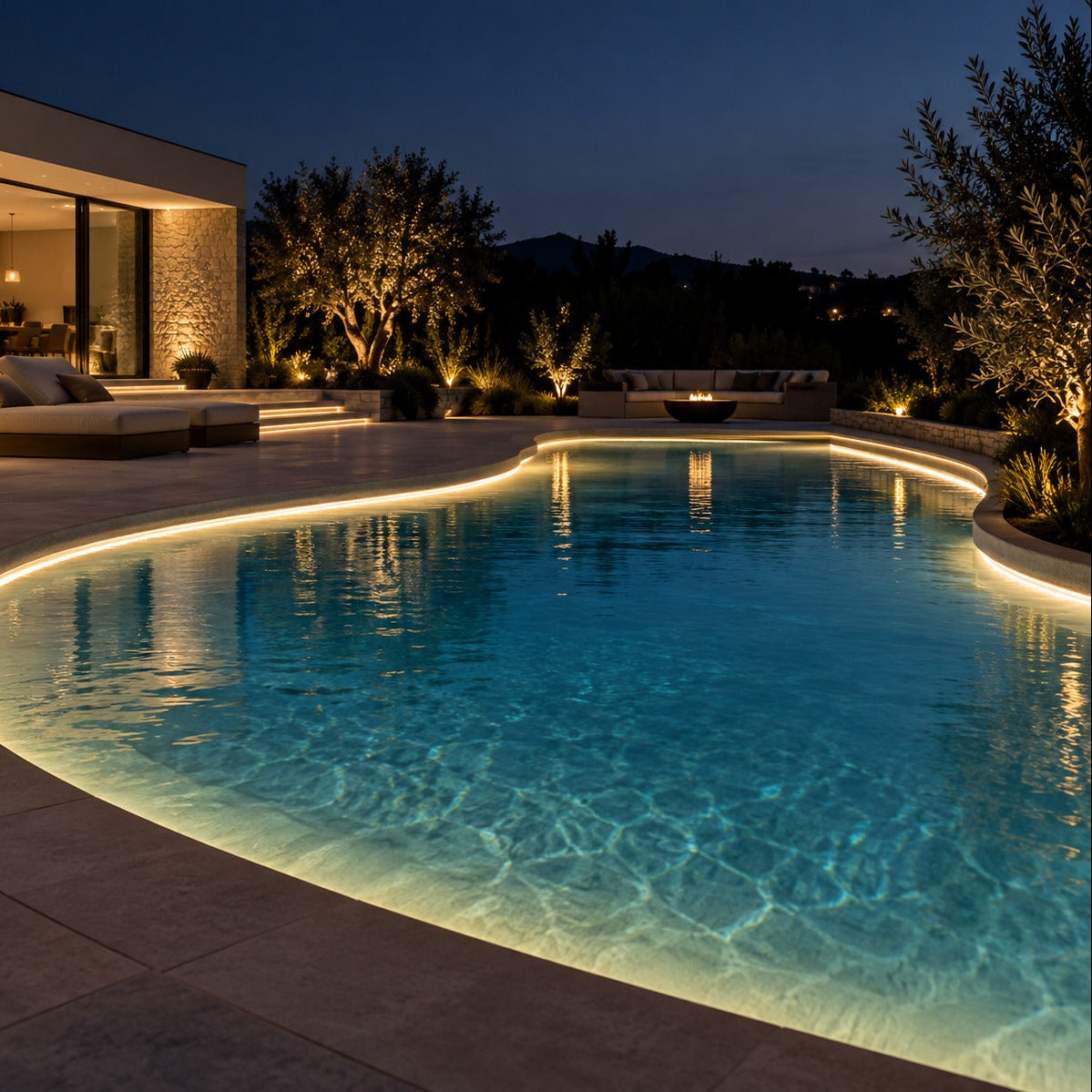

While the strip itself is cuttable, cutting it in the field compromises the IP68 waterproof seal and can allow water to enter the strip. For underwater installations such as pools, spas, and water features, each section is therefore custom-cut, sealed, and prepared at our factory specifically for your project.

Because every piece is made to order, we can customize the strip to your project requirements, including:

• 12V or 24V
• Side bending or top bending
• Color temperature (CCT)
• Lumen output
• Lead wire locations
• Other project-specific requirements

Available Lengths:
06x12mm = 16.4 ft max length
16x15mm, 12x20mm = 65 ft max length

Lead time is approximately 4 weeks.

To properly determine the required lengths and configurations, we will need a diagram or plan of the pool/water feature showing where the strip will be installed. Our team will use this to determine the appropriate lengths and specifications for each section.

Please contact our team before purchasing. Online orders for this product will not be fulfilled until the project has been reviewed and confirmed by a Pampa Lighting team member.

Key Features:

• Sideways Bending Flexibility: Designed to bend sideways or up/down, the Neon Side Flex provides unmatched flexibility for round and curved installations.
• IP68 Rating: With an IP68 rating, this strip light is highly durable and suitable underwater applications like pools and spas.
• Efficient LED Technology: High-efficiency LED chips deliver brilliant illumination, enhancing your outdoor space with striking accent lighting.
• Seamless Integration: Easily integrates with existing AC12V landscaping lighting systems, making it an ideal choice for step lights, concrete step lights, and low-voltage applications. Can be made in 24VDC as well.
• Customizable Length: Strip light can be made from 0-65 ft rolls for each job.
• Installation Options: The Neon Side Flex does not include 3M tape; it must be installed using clips or aluminum channels (sold separately).

Enhance your outdoor lighting projects with the Neon Side Flex Strip Light, the ideal solution for creating flexible and striking lighting designs.

Specs & Features:

• Voltage: 12VAC or 24VDC
• Power Consumption: 1.8w per ft, 30w per roll. (Standard, can be customized)
• Power Supply: Double-sided
• Dimmable: Yes
• Lumens/w:44.7 LM/W (Standard, can be customized)
• Lumens per Roll: 1290 (Standard, can be customized)
• Top Shape: Flat Top (Standard, can be customized)
• View Angle: 120 Deg (Standard, can be customized)
• CRI/Ra: +90

• IP Rating: IP68 Water Resistant
• Certification: FCC Compliance
• Lifespan: 50.000 Hrs
• Roll Dimensions: 16.4'x 0.59"x 0.62" (Standard, can be customized)
• Cut Lengths: Every 1.27"

• Warranty: 3 Years
